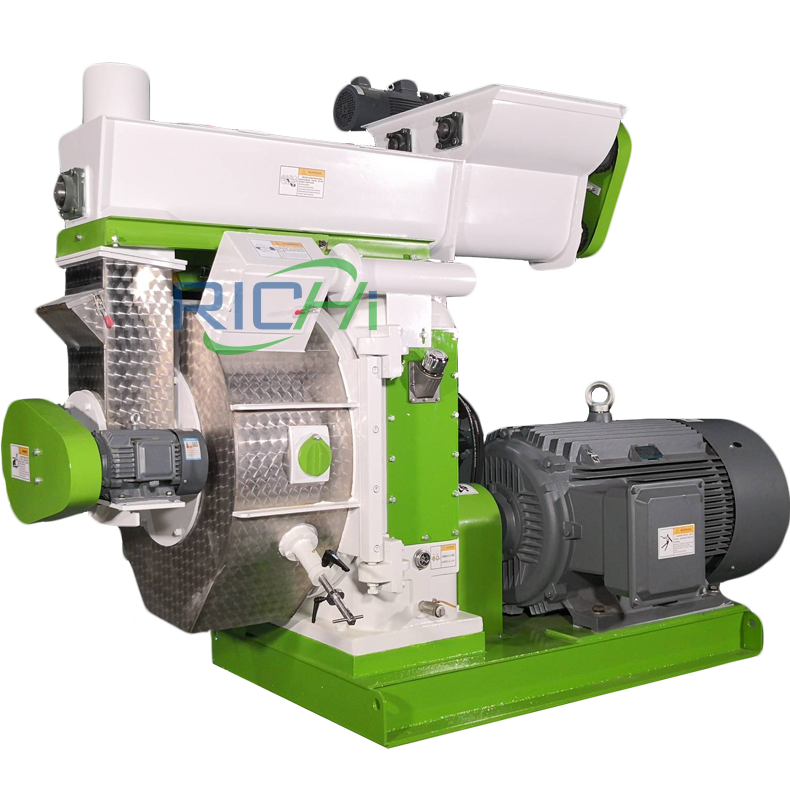

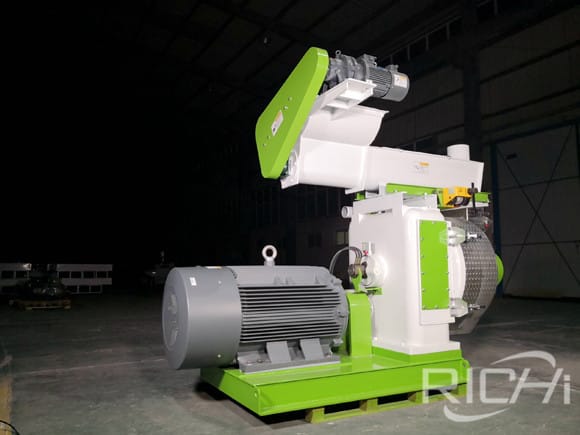

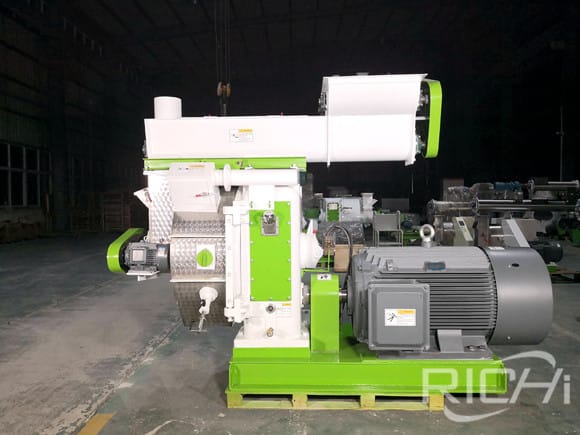

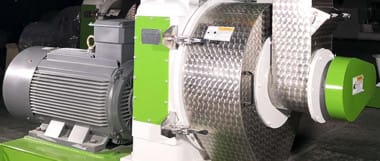

MZLH-320 Wood Pellet Mill

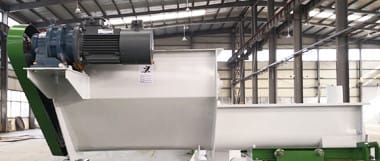

The material is transported into the conditioner through the frequency speed regulating feeder speed regulating feeder.

This model adopts the advanced variable frequency motor feeding,with overload protection devices and machines outside the nesting organization;

A.belong to Inverter feeder (can change the feeding speed)
B.Stainless steel material
C.Siemens electric motor

On the top of the wood pellet machine with a anti-caking bin . Inside the bin, there have two rollers for breaking.

The sawdust to avoid becoming cake .And the bin can keep wood pellet machine working more smoothly.

Because the sawdust is too light , so it is difficult to enter into the pelletizing chamber , so we add a force feeder here, to make the pelletizing process normal working.

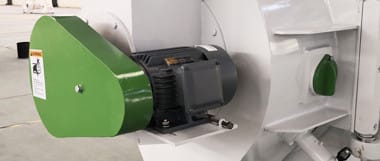

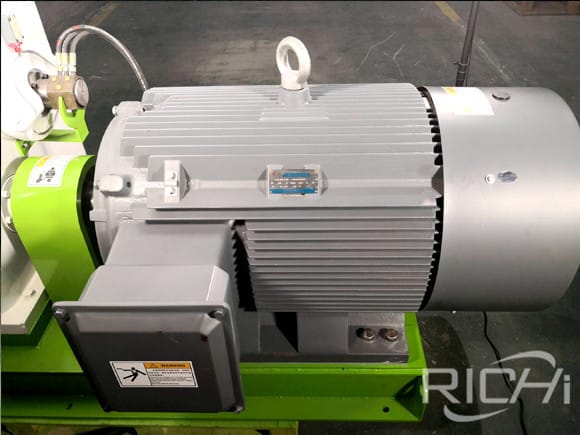

Siemens is one of the world's largest electrical and electronics companies, Siemens electric motors are synonymous with quality, innovation and the highest efficiency.

The high efficiency level reduces energy consumption and directly saves costs for users.
High protection level to ensure the safety and reliability for users.

For RICHI , the higher production costs are used to ensure better product quality. And can ensure the service life of the feed pellet machine and more stable operation.

The Power of Feeder: 0.75KW
The Power of Main Machine:22KW
The Voltage: 220v/ 380v/415v , 50hz or 60hz, 3phase , can be choosed

Imported hig-quality spindle bearings SKF bearings.

Pellet machine is the key equipment in poultry and wood pellet producing process.

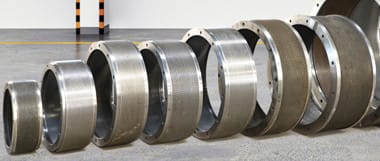

The ring die mould is the heart part of pellet mill machine, and it's one the most easy wearing spare parts as well.

This model is available in a variety of aperture between Φ2-Φ12 ring mold,the user can arbitrarily chosen according to different needs,in order to obtain the best technical and economic benefits;

RICHI Ring die of wood pellet machine used the 40CrMnTi, the carburizing heat treatment can improve abrasive resistance of ring die, the stainless steel doesn’t corrode easily.

Imported gear box, high processing accuracy, high transmission efficiency, low energy consumption.

This model of wood pellet machine uses one-motor straight gear drive system,with the ideal gear ratio,drive torque, stable transmission, high output, low noise, easy operation and maintenance;

RICHI gearbox of wood pellet machine include the spindle, empty shaft, toothed shaft, 5 set SKF bearings, large gear, safety pin assembly. In addition, RICHI feed pellet machine is equipped with the door opening and power-off protection device, the cylinder cover , Coupling protection cover, Safety pin protection cover ,etc. RICHI will do our best to protect the safety of equipment and personnel.

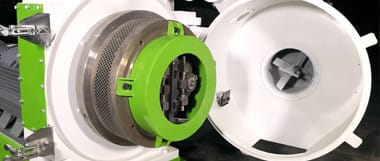

RICHI pelletizing chamber of wood pellet machine used for pelletizing wood pellet , RICHI optimized structure of the granulating chamber ensures the uniformity of the material and maximizes the working potential of the granulating machine.

RICHI pelletizing chamber of wood pellet machine used for pelletizing wood pellet , RICHI optimized structure of the granulating chamber ensures the uniformity of the material and maximizes the working potential of the granulating machine.

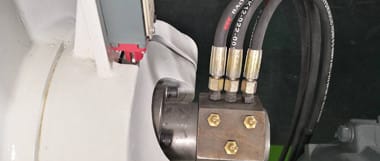

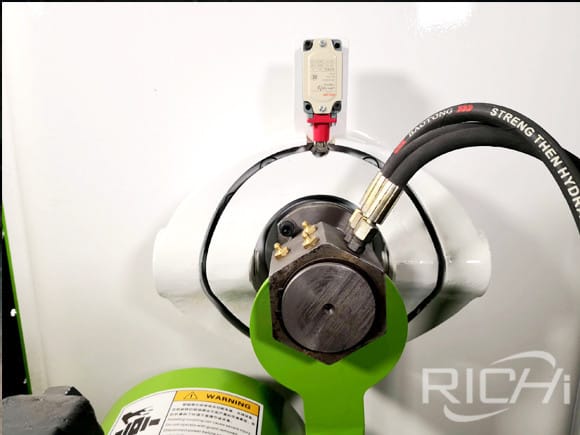

The roller assembly - Made of 40CrMnTi, the structure of the eccentric shaft can better adjust the distance between the ring die and press roller.

The ring die - 304 stainless steel , corrosion resistance, Full automatic CNC ring die drilling machine and vacuum heat treatment technology.

The cutter assembly - To control the length of final pellets , means through adjust the distance between cutter and ring die to get thedifferent length of pellets.

There is a separate electric control cabinet beside each RICHI wood pellet machine, this control cabinet can independently control the operation of the pellet machine and issue instruction. In case of emergency, the pellet machine can be shut down separately for maintenance without affecting the normal operation of other equipment.
